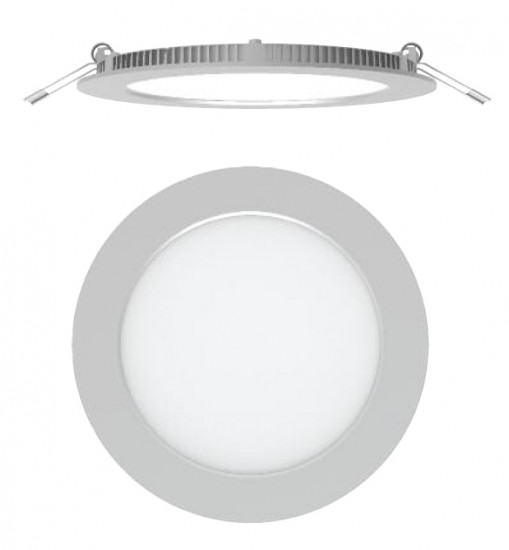

 Recessed luminaire with bodies made of aluminium with thermo painted coating.

TECHNICAL DATA:
Lamp: LED Osram Duris E3
Equipment: Driver 350 mA
Watt: 9W
W Consumption: 10.5 W
Operating voltage: 220-240v 50-60 Hz
Life span: 40.000h
Colour temperature: 3000°K (960 lum.) 4000°K (1044 lum.) 5700°K (1200 lum.)
Protection degree: IP44
Chromatic reprod. index CRI: 80

COLOURS: White, Black, Gold, Chrome, Matt chrome, Striped nickel, Titanium

INSTALLATION: For recessed ceiling, adaptable to all types of modular and plaster ceilings.

INCLUDES:
Includes driver and 9w LED lamp.
Standardly supplied with 4000º K LED lamp.

ACCESSORIES:
DR 1-10v Dimmable driver
DRD Dali Dimmable driver
DRP Dimmable driver with push button
PCFT Lighting control system for DR
3420 Wire connector for DR

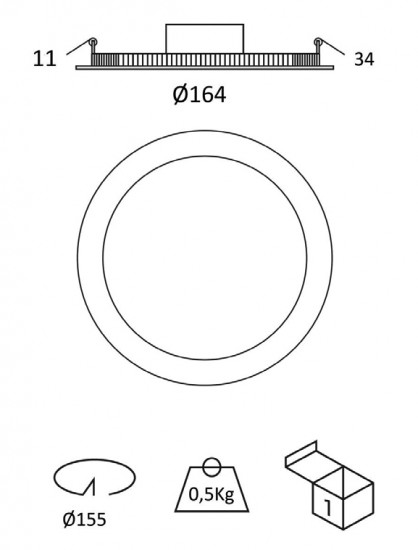

Weight: 0.55kg
Height: 34 mm
Diameter: Ø 164 mm
Ceiling cut: Ø 155 mm
