Warehouse and Storage

Model: KONAK LED 150W

Description

Luminaire suitable for ambient temperatures between -30°C and 40°C.

Technical details

TECHNICAL DATA:
Lamp: LED Osram Oslon SSL
Equipment: Driver
Watt: 150W
W Consumption: 11 W
Operating voltage: 90-305v 47-63Hz
Life span: 50.000h
Colour temperature: 3000°K (15680 lum.) 4000°K (16240 lum.) 5000°K (16800 lum.)
Opening angle (degrees): 80°
Protection degree: IP65
Chromatic reprod. index CRI: >80
Protection degree: IK08

COLOURS: Grey, Matt Gold

INCLUDES:
Includes driver and 150W LED lamps.
Standardly supplied with 5000º K lamp.

ACCESSORIES:
DR 1-10v Dimmable driver
DRD Dali Dimmable driver
DRP Programmable driver
KE1 Emergency kit 1 hour of autonomy
KE3 Emergency kit 3 hours of autonomy
3421 LED with optics 150° (3000ºK/4000ºK/5700ºK)

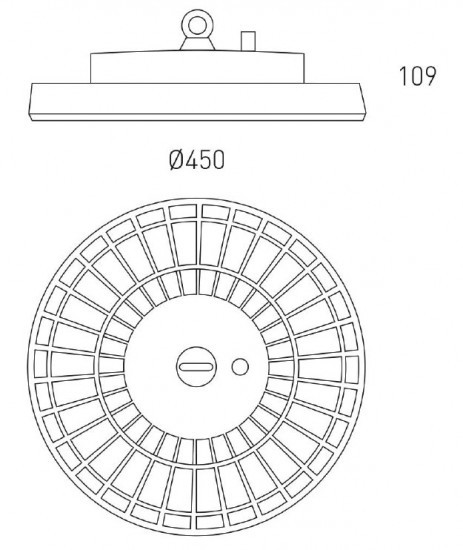

Dimensions

Weight: 9kg
Height: 109 mm
Diameter: Ø 450 mm

Mounting

Directly hung up on ceiling by a 1 meter length suspension kit (Screw and suspension not included). One quick connector of 3 or 5 poles allows the installation without opening the luminaire.
