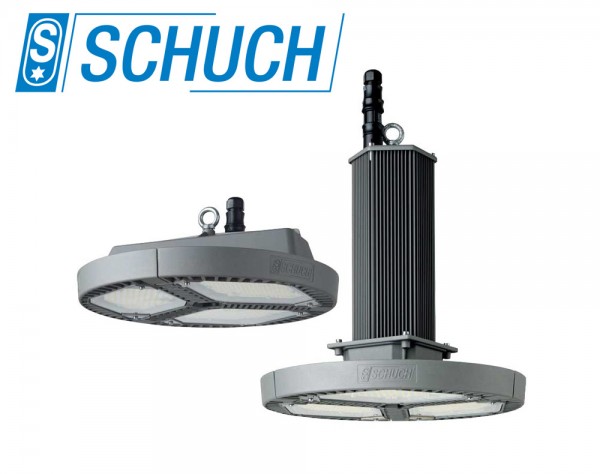

LED High Bay Series 3401/3402... G2

DESIGN

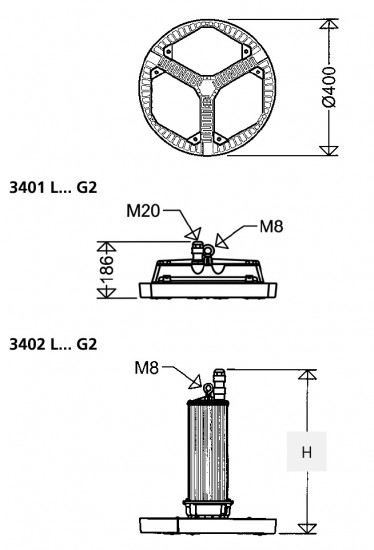

LED-housing: Robust three-part cast aluminium housing with cooling fins, LED-modules and flat safety glasses (IK09).
ECG-housing 3401 ...: Cast aluminium
ECG-housing 3402...: Extruded aluminium with cooling fins. All case parts powder coated in DB702N (mica-iron).
Connection: Preinstalled 3-pole (DIMD 5-pole) plug-type connector,. plug mounted to the housing, socket included.
Mounting: 1-point suspension, eyelet included.

FEATURES AND BENEFITS:

• fast and easy mounting and commissioning due to 1-point suspension and plug-in connection (Plug & Play)
• optimized thermal management due to segementation of the LED modules and direct mounting to the housing, intelligently arranged cooling system, huge heat sink, excellent heat dissipation,
• high expectancy of system life even at maximum permissible ambient temperatures (see Technical Suppliment and article table)
• higest efficiency with light output up to 151/lm/W
• colour reproduction Ra > 80, according to the workplace guide lines suitable for nearly all plant locations
• uniform illumination due to the „Multi-Layer Technology“ i.e. every individual LED illuminates the whole surface, the light curves of the individual LED are overlapping.

APPLICATIONS:

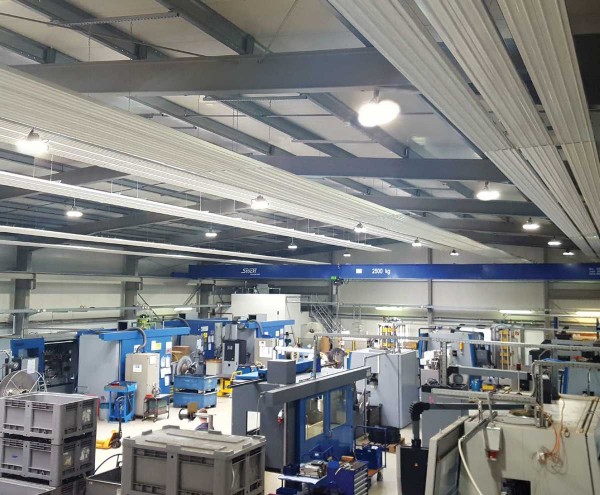

Production areas and warehouses, maintenance and assembly shops, cool storage facilities, walkways in rack areas, hardware stores etc.

LED: Highpower-LED 5,000K, CRI > 80, symmetrical wide beam life cycle L80 = 80.000h at max. ambient temperature (see notes).
ECG: 220-240V, 50-60Hz. Due to the inrush current of the electronic ballasts, the maximum permissible number of light fittings per circuit breaker is limited. Overvoltage protection, excess temperature protection, overload and short circuit protection.
Ambient temperature: -20°C up to see article table

OPTIONS:

• light output reduction (LR) per 230V control line (dimmable)
• uniform luminous flux option (CL) to keep the light output on same level for the whole life cycle
• for connection to group or central battery systems (ZB)
• narrow-wide beam optics (TB)
• narrow beam optics (T)
• PC cover for applications in food industry areas (IFS)
• "D" -sign for locations with increased fire risk (D)
• silicone free
• without plug-type connector
