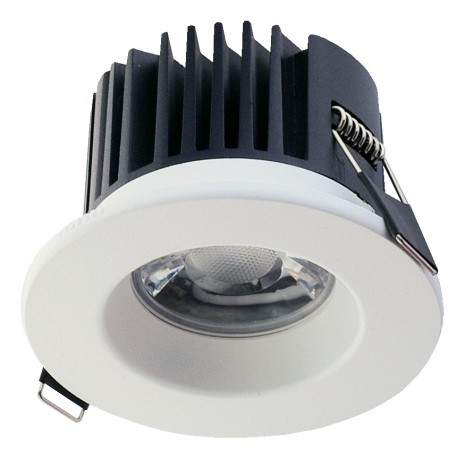

Fire rated IP65 Tunable downlighter.

Fire rated fixed recessed 8W LED to fit void as shallow as 75mm. Incorporated with a built-in tunable white feature, allowing you to switch select colour temperature of 3000°K, 4000°K or 5000°K (3-in-1). Suitable with Trailing or Leading edge dimming as standard.

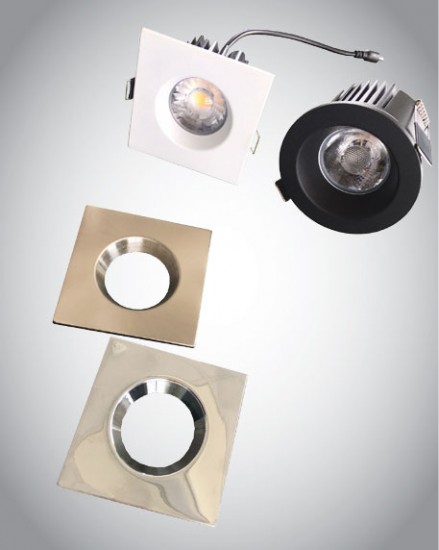

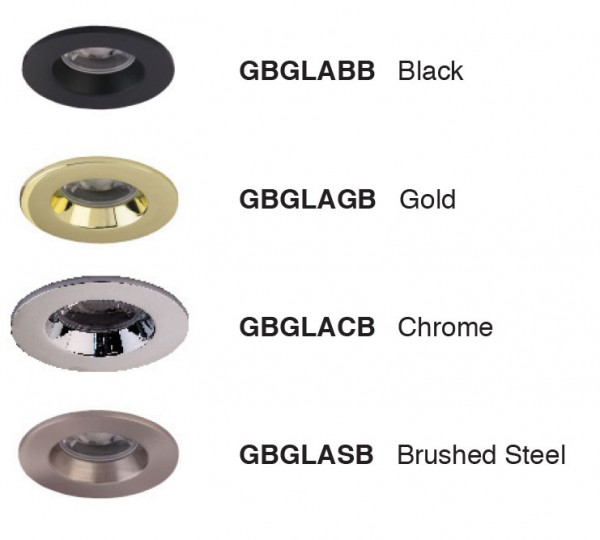

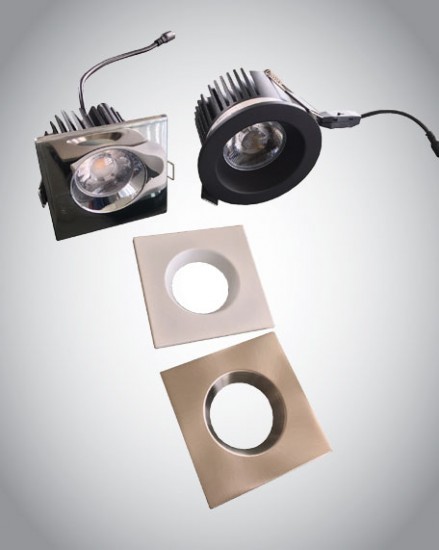

Supplied with White bezel as standard. (other colours are available)

SPECIFICATIONS

• Die-cast aluminium heatsink
• Die cast interchangeable bezel
• White bezel as Standard
• Plug n Play driver
• Triac dimming as Standard
• Thermal cooling housing
• Fire rating tested to FR90 (90min)

Electrical Input Data
Rated input Voltage: 220-240 Vac
Rated input Frequency: 50 - 60 Hz
Rated input Current: 0.04A
Power factor: >0.90

Optical Characteristics
Wattage: 8W
CCT: 3000°K 4000°K 5000°K
Lumens: 680 lm 750 lm 700 lm
CRI: >80
Beam Angle: 36°
Life L70 (hrs): 50,000 hrs

WW = Warm White 3000°K
NW = Neutral White 4000°K
CW = Cool White 5000°K
