Mid Range LightSpot is a high-performance, directional presence detector with built-in photocell for use in almost any internal space. With a range of up to 20m by 20m, it is ideal for larger classrooms, conference rooms, longer storage aisles etc.
It is a self-contained unit, making installation simple and straightforward.

TECHNICAL DATA:
OPERATING VOLTAGE: 230V~ 50Hz (UK & Europe)
SWITCH CAPACITY: 10 Amps max any lighting load except incandescent lamps: 1500W max (at 230V~)
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.5m
RANGE: Adjustable up to 20m
OFF DELAY: 1 min - 96 hours plus 10-second walk-test mode
PHOTOCELL: Passive/Active/Disabled adjustable 50-5000 lux
MATERIAL: Flame retardant PC/ABS
COLOUR: White
WEIGHT: 180g (semi-flush version); 160g (surface version)
IP RATING: 4X
OPERATING TEMPERATURE: 0°C to 40°C

PART NUMBERS

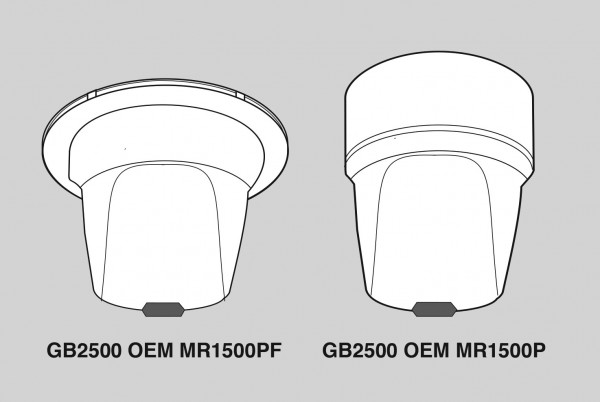

GB2500 OEM MR1500P      Mid Range LightSpot with photocell - surface mounted
GB2500 OEM MR1500PF    Mid Range LightSpot with photocell - semi-flush mounted
QUICKSET PRO                  Digital 2-way Programming Tool
HC5A                                    Universal Hand-held Controller c/w wall bracket
WMK                                     Wall-mounting Kit
MRFK                                   Semi-flush Mounting Kit
