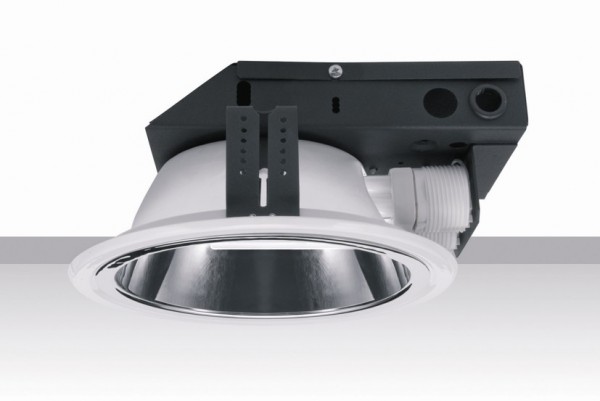

Recessed downlight for compact fluorescent lamps. Body (standard zinc, painted black on request) and ring (standard white, other colours on request) are made of steel. Reflector made of aluminium.

Technical extras upon request:

1. Emergency supply - battery pack 1/2/3h. Please add EM1, EM2, EM3 after index numer.

2. Compensation or passive power (capacitor). Please add COMPENSATION after index number.

3. Dimmable ballast EVG DIM (1 - 10 V). Please add EVG DIM after index number.

4. Digital dimmable ballast (DALI). Please add DALI after index number.

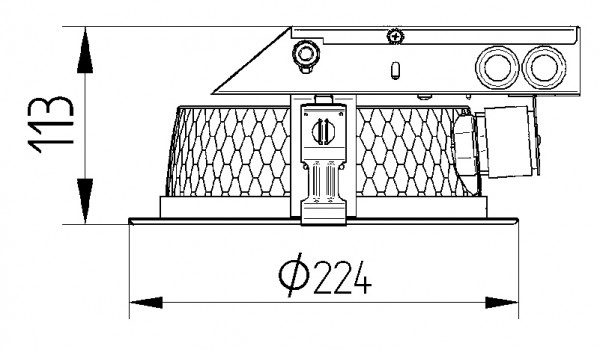

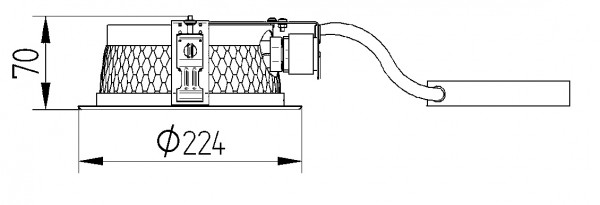

Cut out size - 200 mm

0001 - blue facetted reflector
0002 - golden facetted reflector
0003 - white reflector (any other RAL colour available)
0004 - wide aluminium ring (any other RAL colour available)
0005 - three additional steel rings (any other RAL colour available)
0006 - additional blue acrilic ring (any other RAL colour available)
0007 - painting of the basic ring (any RAL colour available - please add RAL code after art. no.)
0012 - scorpio - stylish glass attachment
0013 - UFO white
0014 - UFO green
0015 - UFO blue
0016 - glass cone with acrilic ring
0017 - glass with acrilic ring
0018 - Bell – aluminium ring with glass and aluminium centre
0019 - Bell H – aluminium ring with glass, aluminium centre with halogen spot
0020 - glass cone
0021 - IP44 glass with additional aluminium ring (any RAL colour)
0022 - acrilic ring with glass tube
0023 - acrilic ring with glass cone tube
0024 - info attachment
0025 - clear 5 mm thick decorative glass
0026 - central frosted 5 mm thick decorative glass
0027 - outer frosted 5 mm thick decorative glass
0028 - completely frosted 5 mm thick decorative glass
0029 - clear 10 mm thick decorative glass
0030 - central frosted 10 mm thick decorative glass
0031 - outer frosted 10 mm thick decorative glass
0032 - completely frosted 10 mm thick decorative glass
0033 - clear 5 mm thick decorative glass ring
0034 - central frosted 5 mm thick decorative glass ring
0035 - outer frosted 5 mm thick decorative glass ring
0036 - completely frosted 5 mm thick decorative
0037 - clear 10 mm thick decorative glass ring
0038 - central frosted 10 mm thick decorative glass ring
0039 - outer frosted 10 mm thick decorative glass ring
0040 - completely frosted 10 mm thick decorative glass ring
0041 - IP44 central mounted glass
0042 - Siper - decorative central frosted glass based on aluminium net
0043 - Siper plus - decorative central frosted glass based on aluminium net with central glass attachment
0044 - Ring V - stylish additional aluminium ring (possible in any RAL colour)
0045 - IP54 clear glass (frosted and central frosted also available)
0046 - Stainless steel additional decorative ring
0047 - EXR Ring with clear 5 mm thick decorative glass
0048 - EXR Ring with central frosted 5 mm thick decorative glass
0049 - EXR Ring with outer frosted 5 mm thick decorative glass
0050 - EXR Ring with completely frosted 5 mm thick decorative glass
0051 - EXR Ring with clear 10 mm thick decorative glass
0052 - EXR Ring with central frosted 10 mm thick decorative glass
0053 - EXR Ring with outer frosted 10 mm thick decorative glass
0054 - EXR Ring with completely frosted 10 mm thick decorative glass
0055 - EXR Ring with clear 5 mm thick decorative glass ring
0056 - EXR Ring with central frosted 5 mm thick decorative glass ring
0057 - EXR Ring with outer frosted 5 mm thick decorative glass ring
0058 - EXR Ring with completely frosted 5 mm thick decorative glass ring
0059 - EXR Ring with clear 10 mm thick decorative glass ring
0060 - EXR Ring with central frosted 10 mm thick decorative glass ring
0061 - EXR Ring with outer frosted 10 mm thick decorative glass ring
0062 - EXR Ring with completely frosted 10 mm thick decorative glass ring
0063 - EXR Ring with acrilic ring
0065 - EXR Ring with glass cone and acrilic ring
0066 - EXR Ring with glass and acrilic ring
0069 - Stainless steel basic ring
0070 - Server - Stainless steel rings with glass
0000-002699 - Concrete ceiling box (please add product name after index number)
0000-002798 - Ceiling plate (please add product name after index number)
