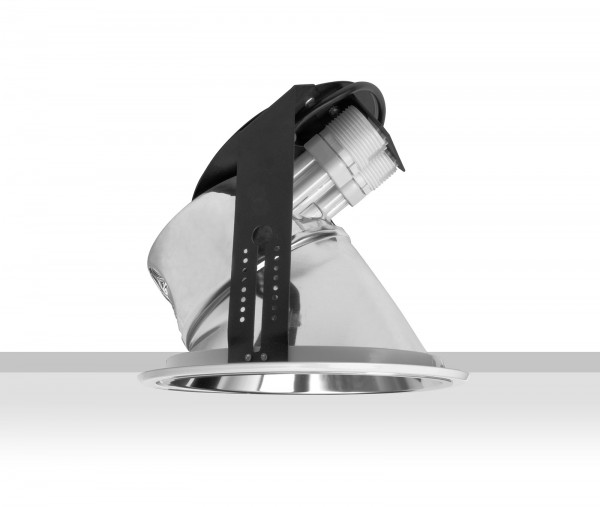

Recessed downlight for compact fluorescent lamps. Body (standard zinc, painted black on request) and ring (standard white, other colours on request) are made of steel. Reflector made of aluminium.

Technical extras upon request:

1. Emergency supply - battery pack 1/2/3h. Please add EM1, EM2, EM3 after index numer.

2. Compensation or passive power (capacitor). Please add COMPENSATION after index number.

3. Dimmable ballast EVG DIM (1 - 10 V). Please add EVG DIM after index number.

4. Digital dimmable ballast (DALI). Please add DALI after index number.

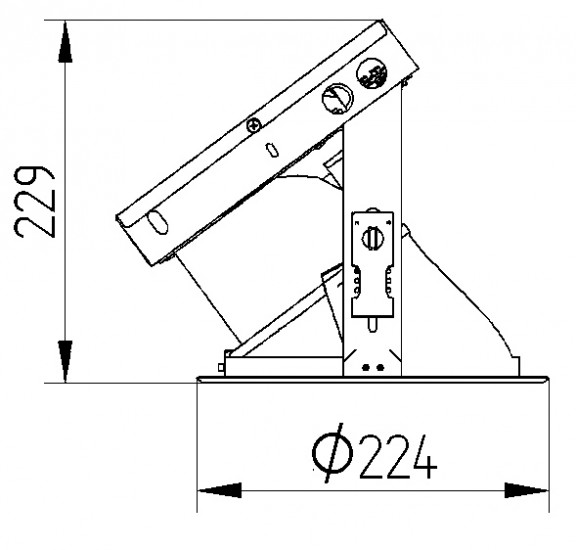

Cut out size - 200 mm

0025 - clear 5 mm thick decorative glass
0026 - central frosted 5 mm thick decorative glass
0027 - outer frosted 5 mm thick decorative glass
0028 - completely frosted 5 mm thick decorative glass
0029 - clear 10 mm thick decorative glass
0030 - central frosted 10 mm thick decorative glass
0031 - outer frosted 10 mm thick decorative glass
0032 - completely frosted 10 mm thick decorative glass
0033 - clear 5 mm thick decorative glass ring
0034 - central frosted 5 mm thick decorative glass ring
0035 - outer frosted 5 mm thick decorative glass ring
0036 - completely frosted 5 mm thick decorative
0037 - clear 10 mm thick decorative glass ring
0038 - central frosted 10 mm thick decorative glass ring
0039 - outer frosted 10 mm thick decorative glass ring
0040 - completely frosted 10 mm thick decorative glass ring
