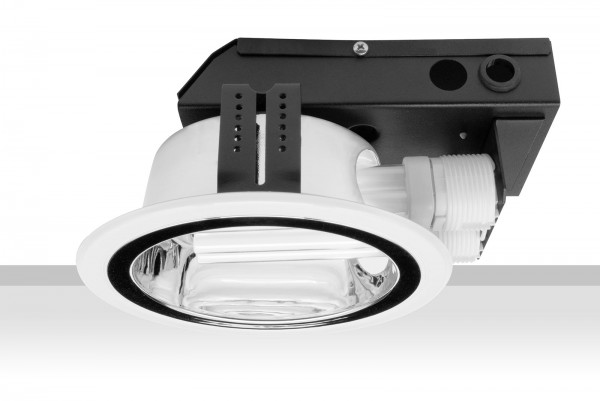

Recessed downlight for compact fluorescent lamps. Body (standard zinc, painted black on request) and ring (standard white, other colours on request) are made of steel. Reflector made of aluminium.

Technical extras upon request:

1. Emergency supply - battery pack 1/2/3h. Please add EM1, EM2, EM3 after index numer.

2. Compensation or passive power (capacitor). Please add COMPENSATION after index number.

3. Dimmable ballast EVG DIM (1 - 10 V). Please add EVG DIM after index number.

4. Digital dimmable ballast (DALI). Please add DALI after index number.

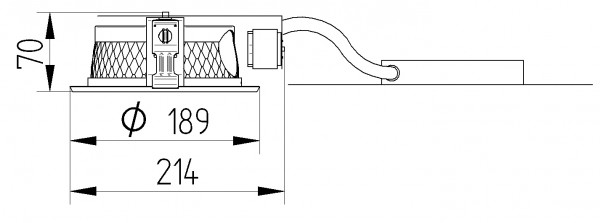

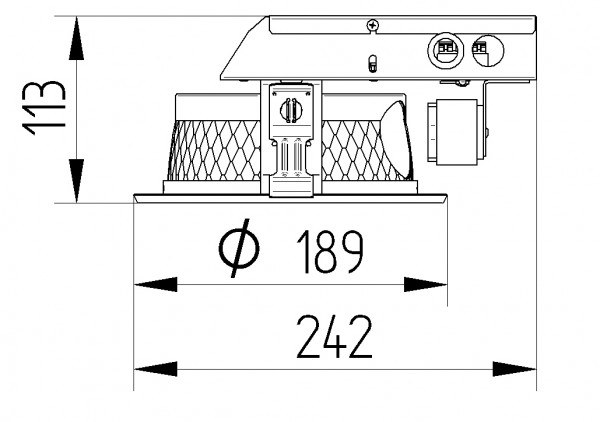

Cut out size - 165 mm

0001 - blue facetted reflector

0002 - golden facetted reflector

0003 - white reflector (any other RAL colour available)

0004 - wide aluminium ring (any other RAL colour available)

0005 - three additional steel rings (any other RAL colour available)

0006 - additional blue acrilic ring (any other RAL colour available)

 0007 - painting of the basic ring (any RAL colour available - please add RAL code after art. no.)

 0012 - scorpio - stylish glass attachment

 0016 - glass cone with acrilic ring

 0017 - glass with acrilic ring

 0020 - glass cone

 0021 - IP44 glass with additional aluminium ring (any RAL colour)

 0022 - acrilic ring with glass tube

 0023 - acrilic ring with glass cone tube

 0024 - info attachment

 0025 - clear 5 mm thick decorative glass

  0026 - central frosted 5 mm thick decorative glass

  0027 - outer frosted 5 mm thick decorative glass

  0028 - completely frosted 5 mm thick decorative glass

  0029 - clear 10 mm thick decorative glass

  0030 - central frosted 10 mm thick decorative glass

  0031 - outer frosted 10 mm thick decorative glass

  0032 - completely frosted 10 mm thick decorative glass

  0033 - clear 5 mm thick decorative glass ring

  0034 - central frosted 5 mm thick decorative glass ring

  0035 - outer frosted 5 mm thick decorative glass ring

  0036 - completely frosted 5 mm thick decorative

  0037 - clear 10 mm thick decorative glass ring

  0038 - central frosted 10 mm thick decorative glass ring

  0039 - outer frosted 10 mm thick decorative glass ring

 0040 - completely frosted 10 mm thick decorative glass ring

 0041 - IP44 central mounted glass

 0042 - Siper - decorative central frosted glass based on aluminium net

 0043 - Siper plus - decorative central frosted glass based on aluminium net with central glass attachment

 0044 - Ring V - stylish additional aluminium ring (possible in any RAL colour)

 0045 - IP54 clear glass (frosted and central frosted also available)

 0046 - Stainless steel additional decorative ring

0047 - EXR Ring with clear 5 mm thick decorative glass

0048 - EXR Ring with central frosted 5 mm thick decorative glass

0049 - EXR Ring with outer frosted 5 mm thick decorative glass

0050 - EXR Ring with completely frosted 5 mm thick decorative glass

0051 - EXR Ring with clear 10 mm thick decorative glass

0052 - EXR Ring with central frosted 10 mm thick decorative glass

0053 - EXR Ring with outer frosted 10 mm thick decorative glass

0054 - EXR Ring with completely frosted 10 mm thick decorative glass

0055 - EXR Ring with clear 5 mm thick decorative glass ring

0056 - EXR Ring with central frosted 5 mm thick decorative glass ring

0057 - EXR Ring with outer frosted 5 mm thick decorative glass ring

0058 - EXR Ring with completely frosted 5 mm thick decorative glass ring

0059 - EXR Ring with clear 10 mm thick decorative glass ring

0060 - EXR Ring with central frosted 10 mm thick decorative glass ring

0061 – EXR Ring with outer frosted 10 mm thick decorative glass ring

0062 – EXR Ring with completely frosted 10 mm thick decorative glass ring

0063 – EXR Ring with acrilic ring

0064 – EXR Ring with Scorpio attachment

0065 – EXR Ring with glass cone and acrilic ring

0066 – EXR Ring with glass and acrilic ring

 0069 – Stainless steel basic ring

 0070 – Server – Stainless steel rings with glass

 0000 – 002699 – Concrete ceiling box (please add product name after index number)

 0000 – 002798 – Ceiling plate (please add product name after index number)
